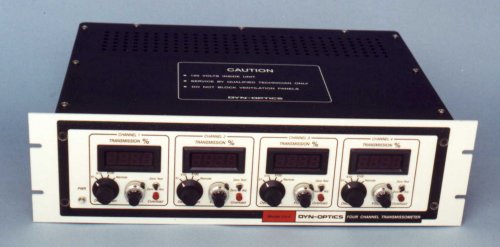

DYN-OPTICS Model 54-4 Four Channel Transmissometer

The Model 54-4 Four Channel Transmissometer has measuring heads within the vacuum chamber and measures transmission of various coatings on flexible film in a continuous coating application. The four channels can be located across the film to measure uniformity of coating. Alternatively, one channel can measure transmission of an initial coating and the other three channels can measure uniformity across the film after a coating. In some applications, a computer can correct the desired transmission of the final coating to compensate for variations in the pre-coat. The instrument can measure the film in air or by means of fiber optics that can measure the transmission in a vacuum chamber. Transmissometers have been made with the number of channels varying from one to fourteen.


Call, write, FAX or email for additional technical information, specifications or price quotation.
